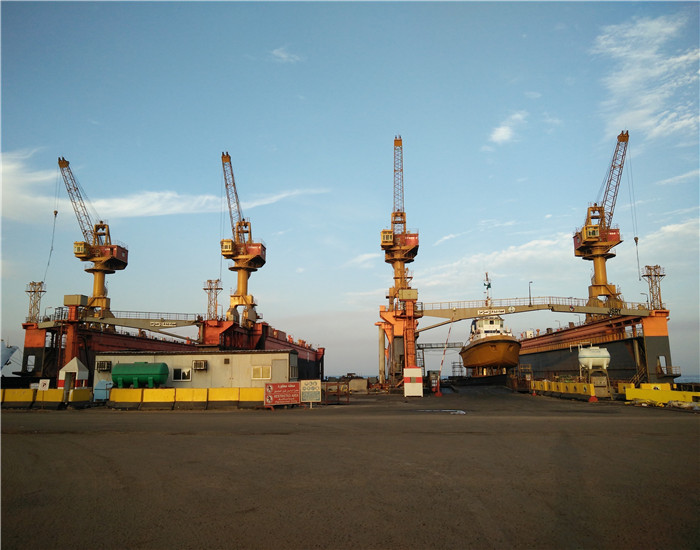

Floating Dock Crane

for Ship Repairing Business

Capacity from 5tons to 100tons, our Design, Manufacture and Commissioning accord to IACS standard, our Portal jib crane for floating dock ensures its excellent performance, strong safety against big wind, inclination, emergency condition. Stonimage floating dock crane can be used in small and large shipbuilding and repair project. It is very rigid for accurate load handling.

Standard Design

 • Class: CCS, BV, DNV, ABS, IACS

 • Ergonomically designed Cabin for operator

 • Smart & safety walkway and ladders

 • Monitoring system for loading situation, wind factors, fault display, alarm control in cabin

 • 4 travel motion alarms

 • Minimized wind pressure and wheel load

 • Gradient 1°~ 3°design

 • Berthing anchor system

 • Power-off automatic rail clamping system

 • Full frequency converters system

 • Real time monitoring for traveling condition

 • Outreach from 6.m to 50m

 • Center lubrication system

 • Programmable PLC Electronic Control System

 • Electronic, stepless speed, infinitely variable controls for hoisting, traverse and travel.

 • Customized spreader beam/lifting tools

Standard Warranty Policy  - Download

*Valid for all brand new cranes which designed, manufactured and supplied by stonimage.

Project Flowchart-standard
